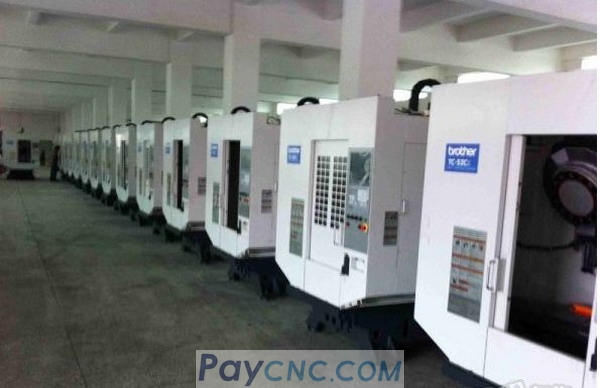

Brother TC-229 Tapping Center Renew

Following you may find our CNC retrofit package for Brother TC-229 as requested.


CNC Controller 218MC-H(Ethernet & Absolute Encoder type)   1 set
(CNC controller with 3 axes simultaneously plus 1 spindle)

AC Servo Motor with Driver for X and Y axes 110SJT-M040D(A4II)  2 sets
(Absolute encoder type Servo Motor+driver+cables+connectors, 1KW, 4Nm, 2500rpm, 4.5A, 110mm flange)

AC Servo Motor with Driver for Z axis 110SJT-MZ060D(A4II) with Brake  1 set
(Absolute encoder type Servo Motor+Brake+driver+cables+connectors for Z axis, 1.5KW, 6Nm, 2500rpm, 7.0A, 110mm flange)

AC Servo Spindle Motor with Driver ZJY208A-5.5BH-B5A2Y1   1 set
(AC Servo Spindle Motor-driver+cables+connectors, 5.5KW, max. 10000rpm)

External MPG  1 unit

Isolating Transformer from 380V/3phase to 220V/3phase  1 unit

Deconcentrator with Relay  1 unit

All cables(6m),Software & Manuals  1set
