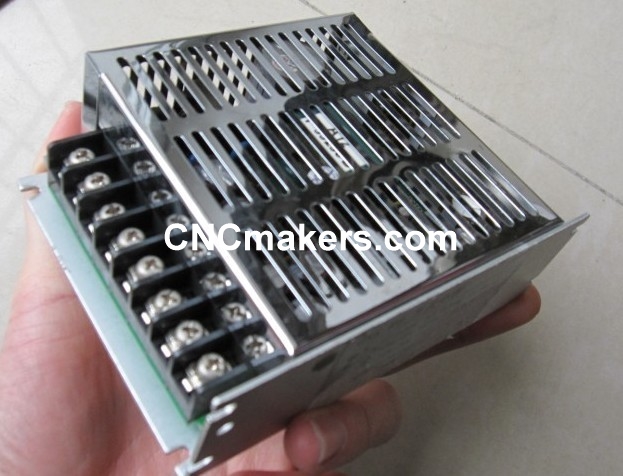

GSKPB GSKPB2 GSKPC GSKPC2 Power Supply

GSKPB GSKPB2 GSKPC GSKPC2 Power Supply for CNC controllers, including, GSK980TDb, GSK980TDa, GSK928TEII, GSK928TEa, GSK218M, GSK218MC, GSK980MDa, etc.

GSKPB Specification:

Input voltage: single-phase AC180 ~ 260V, 50/60Hz

Input Current: 1A (Max)

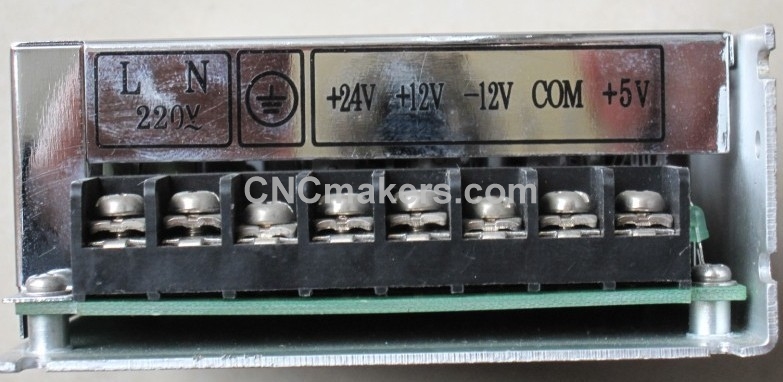

Output: 4 groups of output

+5 V/3A +12 V/1A -12V/0.5A +24 V/0.5A

Working environment: 0 ~ 45 degree, 10 ~ 85% RH, non-condensing. Non-corrosive, flammable,

Explosive, a conductive gas, liquid and dust.

Storage environment: -20 ~ 80 degree, 10 ~ 85% RH, non-condensing.

Dimensions: 117.8 x 97.3 x 41mm (see PB power box outline drawing)

Weight: 0.35Kg

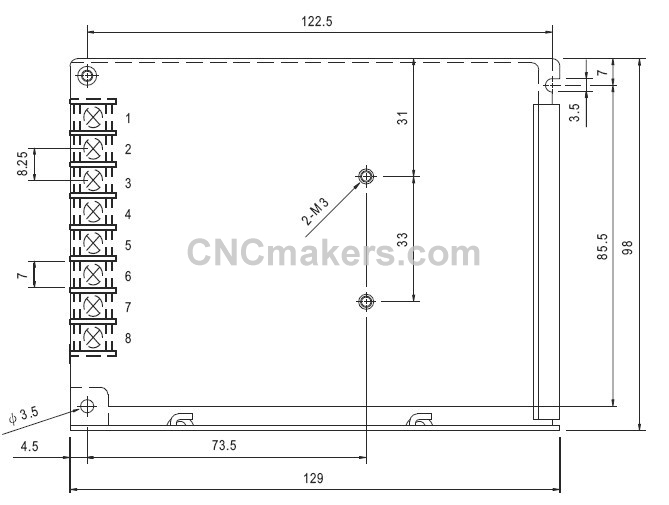

GSKPB Dimension

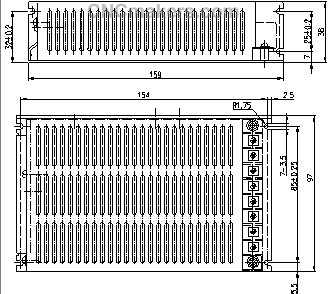

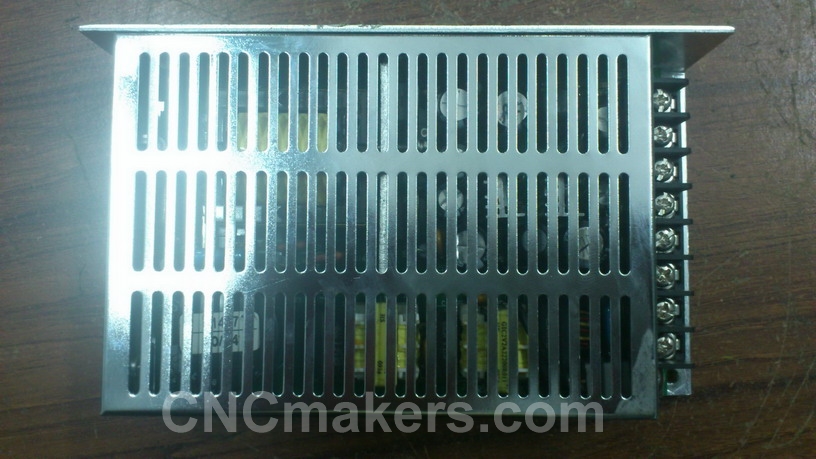

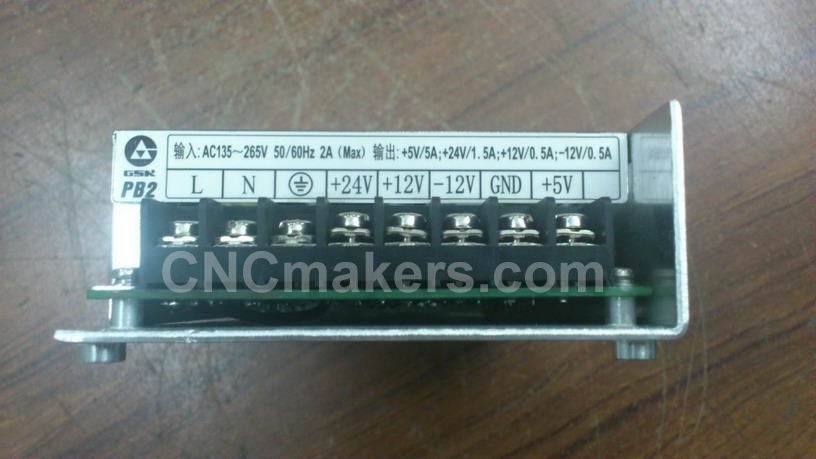

GSKPB2 Power Supply
