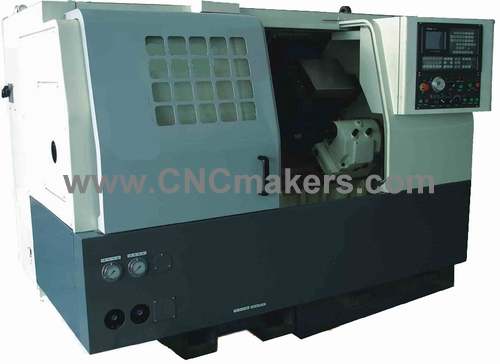

CK40/CK50 CNC Lathe Machine

CK40/CK50 CNC LATHE
ITEMS UNIT CK40 CK50
CAPACITY
Max. swing Dia. mm
 Φ400 Φ500
Max. machining Dia. Φ285 Φ370
Max.turning length 400 530
SPINDLE

Type of nose / A2-5  A2-6
Max. bore Dia. mm Φ57 Φ62
speed rpm 70-3000 60-2250
Motor power kW 7.5 15
CHUCK Specification(Hydraulic) mm Φ165 Φ210
Bar machining ability  Φ42 Φ51
TRAVEL


Max.travel X mm 165 210
Z 410 550
Rapid speed  X m/min 12
Z 16
Servo motor torque X N.M 11
Z  20
TURRET
Tool position /       8 / 12 (optional)
Tool size  Turning  mm 20×20  25×25
Boring  Φ32 Φ40
SlEEVE
Dia. mm Φ70  Φ90
Travel 80 100
taper MT  4 5
OTHERS


Slant angle of guide way /  45°
Power supply kVA 25 35
Overall dimension (L×W×H) mm 2540×1670×1660 3060×1810×1850
Net weight (Approx) kg 3000 4500
CNC system / GSK980TDb or GSK988T with DA98A/DA98B/SJT AC servo motor driver
DAP03/ZJY AC Servo Spindle Motor Driver
Design and Specifications are subject to change without prior notice.
