SJT AC Servo Motor
SJT AC servo motor with Impressive outline and compact configuration, with totally enclosed aluminum housing applied
Low electromagnetic noise, steady running and high efficiency, with optimal electromagnetic design applied
Excellent low speed characteristic and strong overload capability, with high performance rare-earth permanent-magnet material employed
Employed with high speed, high precision photoelectric encoder, which can be used for high precision speed and position control if matched with a high performance driver
Reliable use under the -15 ~ 40 degree ambient temperatures as well as dust and oil fog environment, with F insulation degree and IP65 protection degree applied
Reliable stability, little vibration and low noise of motor run within a high speed range, with imported high precision bearings and high precision rotor dynamic balance processing employed
Rapid response capability by large torque inertia ratio
High performance-cost ratio with shock-resistance and long life
80SJT AC SERVO MOTOR TECHNICAL PARAMETERS
|
Type
Item
|
80SJT-M024C
|
80SJT-M024E
|
80SJT-M032C
|
80SJT-M032E
|
|
Rated power （kW）
|
0.5
|
0.75
|
0.66
|
1.0
|
|
Pole pairs
|
4
|
|
Drive unit input voltage（V）
|
3-phase (or single phase) AC 220V
|
3-phase AC 220V
|
|
Rated current （A）
|
3
|
4.8
|
5
|
6.2
|
|
Zero torque （N·m）
|
2.4
|
2.4
|
3.2
|
3.2
|
|
Rated torque （N·m）
|
2.4
|
2.4
|
3.2
|
3.2
|
|
Max. torque （N·m）
|
7.2
|
7.2
|
9.6
|
9.6
|
|
Rated speed （r/min）
|
2000
|
3000
|
2000
|
3000
|
|
Max. speed （r/min）
|
2500
|
4000
|
2500
|
4000
|
|
Moment inertia （kg·m2）
|
0.83×10-4
|
0.83×10-4
|
1.23×10-4
|
1.23×10-4
|
|
Weight （kg）
|
2.8
|
2.9
|
3.4
|
3.5
|
|
Insulation degree
|
F
|
|
Vibration degree
|
R
|
|
Protection degree
|
IP65
|
|
Installation type
|
IMB5（flange）
|
|
Working mode
|
S1（continuous）
|
|
Imbedded encoder （p/r）
|
Incremental 2500 p/r (standard configuration)
|
|
Brake
|
None
|
110SJT , 130SJT AC SERVO MOTOR TECHNICAL PARAMETERS (1)
|
Type
Item
|
110SJT-M
040D
|
110SJT-M
060D
|
130SJT-M
040D
|
130SJT-M
050D
|
130SJT-M
060D
|
|
Rated power （kW）
|
1.0
|
1.5
|
1.0
|
1.3
|
1.5
|
|
Pole pairs
|
4
|
|
Drive unit input voltage（V）
|
3-phase (or single phase) AC 220V
|
3-phase AC 220V
|
|
Rated current （A）
|
4.5
|
7
|
4
|
5
|
6
|
|
Zero torque （N·m）
|
4
|
6
|
4
|
5
|
6
|
|
Rated torque （N·m）
|
4
|
6
|
4
|
5
|
6
|
|
Max. torque （N·m）
|
12
|
12
|
10
|
12.5
|
18
|
|
Rated speed （r/min）
|
2500
|
2500
|
2500
|
2500
|
2500
|
|
Max. speed （r/min）
|
3000
|
3000
|
3000
|
3000
|
3000
|
|
Moment inertia（kg·m2）
|
0.68×10-3
|
0.95×10-3
|
1.1×10-3
|
1.1×10-3
|
1.3×10-3
|
|
Weight （kg）
|
6.1
|
7.9
|
6.5
|
6.5
|
7.2
|
|
Insulation degree
|
B
|
|
Vibration degree
|
R
|
|
Protection degree
|
IP65
|
|
Installation type
|
IMB5（flange）
|
|
Working mode
|
S1（continuous）
|
|
Imbedded encoder （p/r）
|
Incremental 2500 p/r（standard configuration）
|
|
Brake
|
DC 24V,4N·m, 1.6kg is added to the corresponding motor
|
DC 24V,12N·m， 2.9kg is added to the corresponding motor
|
110SJT , 130SJT AC SERVO MOTOR TECHNICAL PARAMETERS (2)
|
Type
Item
|
130SJT-M
075D
|
130SJT-M
100B
|
130SJT-M
100D
|
130SJT-M
150B
|
130SJT-M 150D
|
|
Rated power（kW）
|
1.88
|
1.5
|
2.5
|
2.3
|
3.9
|
|
Pole pairs
|
4
|
|
Drive unit input voltage（V）
|
3-phase AC 220V
|
|
Rated current （A）
|
7.5
|
6
|
10
|
8.5
|
14.5
|
|
Zero torque （N·m）
|
7.5
|
10
|
10
|
15
|
15
|
|
Rated torque （N·m）
|
7.5
|
10
|
10
|
15
|
15
|
|
Max. torque （N·m）
|
20
|
25
|
25
|
30
|
30
|
|
Rated speed （r/min）
|
2500
|
1500
|
2500
|
1500
|
2500
|
|
Max. speed （r/min）
|
3000
|
2000
|
3000
|
2000
|
3000
|
|
Moment inertia（kg·m2）
|
1.85×10-3
|
2.42×10-3
|
2.42×10-3
|
3.1×10-3
|
3.6×10-3
|
|
Weight （kg）
|
8.1
|
9.6
|
9.7
|
11.9
|
12.7
|
|
Insulation degree
|
B
|
|
Vibration degree
|
R
|
|
Protection degree
|
IP65
|
|
Installation type
|
IMB5（flange）
|
|
Working mode
|
S1（continuous）
|
|
Imbedded encoder （p/r）
|
Incremental 2500 p/r（standard configuration）
|
|
Brake
|
DC 24V,12N·m, 2.9kg is added to the corresponding motor
|
175SJT AC SERVO MOTOR TECHNICAL PARAMETERS
|
Type
Item
|
175SJT-M
180B
|
175SJT-M
180D
|
175SJT-M
220B
|
175SJT-M
220D
|
175SJT-M
300B
|
175SJT-M
300D
|
|
Rated power （kW）
|
2.8
|
3.8
|
3.5
|
4.5
|
3.8
|
6
|
|
Pole pairs
|
3
|
|
Drive unit input voltage（V）
|
3-phase AC 220V
|
|
Rated current （A）
|
15
|
16.5
|
17.5
|
19
|
19
|
27.5
|
|
Zero torque （N·m）
|
18
|
18
|
22
|
22
|
30
|
30
|
|
Rated torque（N·m）
|
18
|
14.5
|
22
|
17.6
|
24
|
24
|
|
Max. torque （N·m）
|
36
|
29
|
44
|
35.2
|
48
|
48
|
|
Rated speed（r/min）
|
1500
|
2500
|
1500
|
2500
|
1500
|
2500
|
|
Max. speed（r/min）
|
2000
|
3000
|
2000
|
3000
|
2000
|
3000
|
|
Moment inertia（kg·m2）
|
6.5×10-3
|
6.5×10-3
|
9.0×10-3
|
9.0×10-3
|
11.2×10-3
|
11.2×10-3
|
|
Weight （kg）
|
22.8
|
22.9
|
28.9
|
29.2
|
34.3
|
34.3
|
|
Insulation degree
|
B
|
|
Vibration degree
|
R
|
|
Protection degree
|
IP65
|
|
Installation type
|
IMB5（flange）
|
|
Working mode
|
S1（continuous）
|
|
Imbedded encoder
|
Incremental 2500 p/r（standard configuration）
|
|
Brake
|
DC 24V,32N·m, 7.7kg is added to the corresponding motor
|

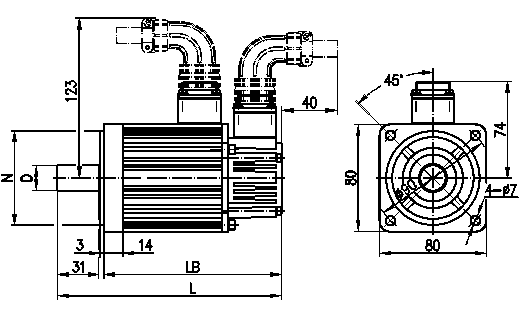

80SJT AC Servo Motor Installation Dimension
|
type
|
D(mm)
|
N(mm)
|
LB(mm)
|
L(mm)
|
|
80SJT—M024C
|
φ190-0.013
|
φ700-0.03
|
163
|
198
|
|
80SJT—M024E
|
φ190-0.013
|
φ700-0.03
|
163
|
198
|
|
80SJT—M032C
|
φ190-0.013
|
φ700-0.03
|
181
|
216
|
|
80SJT—M032E
|
φ190-0.013
|
φ700-0.03
|
181
|
216
|

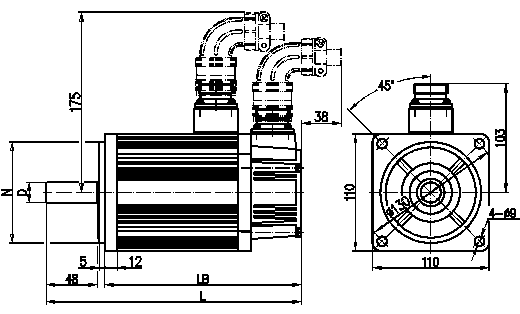

110SJT AC Servo Motor Installation Dimension
|
Type
|
D(mm)
|
N(mm)
|
LB(mm)
|
L(mm)
|
|
110SJT—M040D
|
φ190-0.013
|
φ950-0.035
|
186 (237)
|
241 (292)
|
|
110SJT—M060D
|
φ190-0.013
|
φ950-0.035
|
212 (263)
|
267 (318)
|
|
Remark: LB and L values of motor with brake are included in the brackets.
|

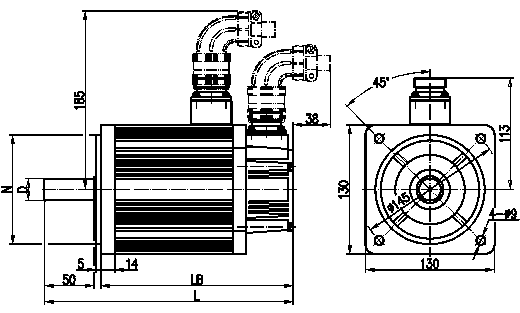

130SJT AC Servo Motor Installation Dimension
|
Type
|
D(mm)
|
N(mm)
|
LB(mm)
|
L(mm)
|
|
130SJT-M040D
|
φ220-0.013
|
φ1100-0.035
|
168 (227)
|
225 (284)
|
|
130SJT-M050D
|
φ220-0.013
|
φ1100-0.035
|
168 (227)
|
225 (284)
|
|
130SJT-M060D
|
φ220-0.013
|
φ1100-0.035
|
176 (235)
|
233 (292)
|
|
130SJT-M075D
|
φ220-0.013
|
φ1100-0.035
|
188 (247)
|
245 (304)
|
|
130SJT-M100B
|
φ220-0.013
|
φ1100-0.035
|
208 (267)
|
265 (324)
|
|
130SJT-M100D
|
φ220-0.013
|
φ1100-0.035
|
208 (267)
|
265 (324)
|
|
130SJT-M150B
|
φ220-0.013
|
φ1100-0.035
|
238 (297)
|
295 (354)
|
|
130SJT-M150D
|
φ220-0.013
|
φ1100-0.035
|
248 (307)
|
305 (364)
|
|
Remark: LB and L values of motor with brake are included in the brackets.
|
175SJT AC Servo Motor Installation Dimension
|
Type
|
D(mm)
|
N(mm)
|
LB(mm)
|
L(mm)
|
|
175SJT—M180B
|
φ350+0.01
|
φ114.30-0.025
|
244 (311)
|
323 (390)
|
|
175SJT—M180D
|
φ350+0.01
|
φ114.30-0.025
|
244 (311)
|
323 (390)
|
|
175SJT—M220B
|
φ350+0.01
|
φ114.30-0.025
|
279 (346)
|
358 (425)
|
|
175SJT—M220D
|
φ350+0.01
|
φ114.30-0.025
|
279 (346)
|
358 (425)
|
|
175SJT—M300B
|
φ350+0.01
|
φ114.30-0.025
|
309 (382)
|
388 (461)
|
|
175SJT—M300D
|
φ350+0.01
|
φ114.30-0.025
|
309 (382)
|
388 (461)
|
|
Remark: LB and L values of motor with brake are included in the brackets.
|
User Manual Download Link:
 SJT_Series_AC_Servo_Motor_User_Manual.rar
