JLD6 series Tool post (Turret)
JLD6 6-station horizontal electric tool post adopts the working principle of worm wheel and worm driver, front and rear fluted disc locking, it features dependable and steady transposition, short time of changing position, big tangential torque, multi-position tool carrier. The transposition and transmitting adopt dependable contactless hall component with long service life, The series tool post is an ideal product to process complicated parts.

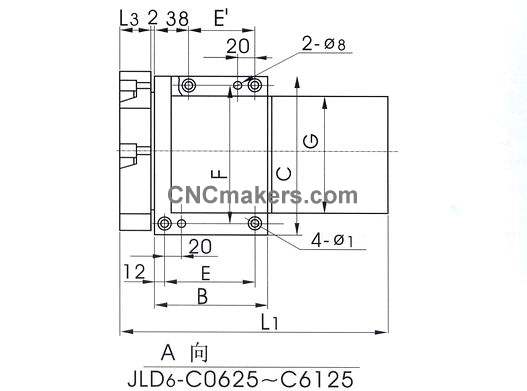

Installation dimension
|
size
model
|
H1
|
H2
|
H3
|
L1
|
L3
|
B1
|
B2
|
B3
|
B4
|
A
|
B
|
C
|
D
|
E
|
E’
|
F
|
G
|
Φ1
|
Φ2
|
b
|
|
JLD6-0625
|
172
|
100
|
59
|
315
|
35
|
63
|
14
|
15
|
93
|
/
|
133
|
164
|
/
|
106
|
80
|
144
|
120
|
11
|
190
|
14
|
|
JLD6-6132
|
200
|
118
|
78
|
380
|
55
|
92
|
20
|
25
|
142
|
222
|
160
|
207
|
200
|
140
|
/
|
183
|
155
|
11
|
240
|
20
|
|
JLD6-6140
|
200
|
118
|
78
|
380
|
55
|
92
|
20
|
25
|
142
|
222
|
160
|
207
|
200
|
140
|
/
|
183
|
155
|
11
|
240
|
25
|
Technical Specifications
|
Spec.
model
|
Motor Power(w)
|
Motor Speed(rpm)
|
Clamp Torque(KN)
|
Re-positioning Accuracy(“)
|
Tool Change Time(s)
|
|
60°
|
120°
|
180°
|
240°
|
|
JLD6-0625
|
60
|
1400
|
12
|
±2
|
1.5
|
2
|
2.5
|
3
|
|
JLD6-6132
|
120
|
1400
|
20
|
±2
|
1.5
|
2
|
2.5
|
3
|
|
JLD6-6140
|
120
|
1400
|
20
|
±2
|
1.5
|
2
|
2.5
|
3
|
