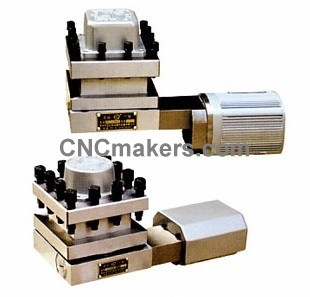

HAK21(LD4B four station tool posts) vertical electrical tool posts adopts
the working principle of worm wheel and worm driver, advanced three
fluted disc engagement and fastening. It features steady transposition,
prevents from rising and cutting fluid’s leaking into the tool carriage
during transposition. The contactless hall component transmitting is
used during transposition. This tool post is used widely in CNC lathes
all over China.
User Manual Download
Four station tool posts dimension(HAK21)
Dimensions:
|
Model
|
H1
|
H2
|
H3
|
H4
|
L1
|
L2
|
L3
|
L4
|
A
|
A1
|
B
|
B1
|
|
LD4B-CK0620
(HAK21100-51)
|
146
|
51
|
26
|
15.5
|
60
|
100
|
100
|
72
|
114
|
50
|
114
|
50
|
|
LD4B-CK0625
(HAK21130-51)
|
152
|
51
|
30
|
17
|
78/114
|
127
|
130
|
99
|
130
|
65
|
138
|
65
|
|
LD4B-CK6125
(HAK21136-57)
|
159
|
57
|
31
|
16.5
|
78/114
|
127
|
136
|
104
|
136
|
68
|
148
|
68
|
|
LD4B-CK6132
(HAK21158-70)
|
187
|
70
|
40
|
20
|
76
|
137
|
158
|
114
|
161
|
79
|
171
|
79
|
|
LD4B-CK6132D
(HAK21158D-70)
|
187
|
70
|
40
|
20
|
76
|
137
|
158
|
114
|
166
|
79
|
180
|
79
|
|
LD4B-CK6140
(HAK21166-81)
|
200
|
81
|
38
|
19.5
|
76
|
137
|
166
|
116
|
192
|
83
|
192
|
93
|
|
LD4B-CK6150
(HAK21180-110)
|
225
|
110
|
45
|
22
|
93
|
137
|
180
|
124
|
180
|
90
|
192
|
90
|
|
LD4B-CK6163
(HAK21200-120)
|
234
|
120
|
42
|
31
|
110
|
140
|
200
|
120
|
200
|
100
|
200
|
100
|
|
LD4B-CK6172
(HAK21240-120)
|
255
|
120
|
50
|
30
|
103
|
220
|
240
|
160
|
240
|
120
|
240
|
120
|
|
LD4B-CK6180
(HAK21280-120)
|
245
|
120
|
55
|
25
|
103
|
220
|
280
|
200
|
280
|
140
|
280
|
140
|
|
LD4B-CK61100
(HAK21300-145)
|
285
|
145
|
65
|
30
|
103
|
220
|
300
|
192
|
300
|
150
|
300
|
150
|
|
Model
|
C
|
D
|
D1
|
E
|
E1
|
F
|
Φ
|
Φ1
|
Φ2
|
h
|
M
|
|
LD4B-CK0620
(HAK21100-51)
|
100
|
100
|
70
|
7
|
18
|
7
|
7
|
11
|
78
|
6.5
|
M8
|
|
LD4B-CK0625
(HAK21130-51)
|
120
|
100
|
90
|
15
|
20
|
9
|
9
|
14
|
88
|
10.5
|
M10
|
|
LD4B-CK6125
(HAK21136-57)
|
126
|
108
|
108
|
14
|
14
|
11
|
11
|
17
|
88
|
11
|
M10
|
|
LD4B-CK6132
(HAK21158-70)
|
146
|
126
|
126
|
23
|
23
|
12
|
13
|
19
|
88
|
13
|
M16
|
|
LD4B-CK6132D
(HAK21158D-70)
|
156
|
130
|
130
|
18
|
18
|
12
|
13
|
19
|
88
|
13
|
M16
|
|
LD4B-CK6140
(HAK21166-81)
|
168
|
152
|
152
|
20
|
20
|
12
|
13
|
19
|
88
|
13
|
M16
|
|
LD4B-CK6150
(HAK21180-110)
|
168
|
152
|
152
|
14
|
14
|
12
|
13
|
19
|
88
|
17
|
M16
|
|
LD4B-CK6163
(HAK21200-120)
|
177
|
150
|
130
|
25
|
35
|
11.5
|
13
|
19
|
98
|
13
|
M16
|
|
LD4B-CK6172
(HAK21240-120)
|
210
|
210
|
160
|
15
|
40
|
15
|
18
|
27
|
142
|
17
|
M16
|
|
LD4B-CK6180
(HAK21280-120)
|
240
|
240
|
240
|
20
|
20
|
20
|
18
|
27
|
142
|
17
|
M16
|
|
LD4B-CK61100
(HAK21300-145)
|
260
|
260
|
260
|
20
|
20
|
20
|
18
|
27
|
142
|
17
|
M16
|
Specifications:
|
Model
|
Motor
Power
w
|
Motor
Speed
r/min
|
Clamping
kN
|
Repeat
ability
“
|
Change
Time
S
|
|
90o
|
180o
|
270o
|
|
LD4B-CK0620
(HAK21100-51)
|
50
|
1400
|
5
|
±2
|
1.5
|
2
|
2.5
|
|
LD4B-CK0625
(HAK21130-51)
|
90
|
1400
|
6
|
±2
|
1.7
|
2.2
|
2.7
|
|
LD4B-CK6125
(HAK21136-57)
|
90
|
1400
|
6
|
±2
|
1.7
|
2.5
|
2.7
|
|
LD4B-CK6132
(HAK21158-70)
|
120
|
1400
|
12
|
±2
|
2.0
|
2.5
|
3.0
|
|
LD4B-CK6132D
(HAK21158D-70)
|
120
|
1400
|
12
|
±2
|
2.0
|
2.5
|
3.0
|
|
LD4B-CK6140
(HAK21166-81)
|
120
|
1400
|
12
|
±2
|
2.0
|
2.5
|
3.0
|
|
LD4B-CK6150
(HAK21180-110)
|
120
|
1400
|
14
|
±2
|
2.2
|
2.7
|
3.3
|
|
LD4B-CK6163
(HAK21200-120)
|
180
|
1400
|
18
|
±2
|
2.5
|
3.2
|
3.9
|
|
LD4B-CK6172
(HAK21240-120)
|
180
|
960
|
24
|
±2
|
3.7
|
4.7
|
5.7
|
|
LD4B-CK6180
(HAK21280-120)
|
180
|
960
|
28
|
±2
|
4.1
|
5.2
|
6.3
|
|
LD4B-CK61100
(HAK21300-145)
|
180
|
960
|
32
|
±2
|
4.5
|
5.6
|
6.8
|
