Inductive Sensors for Tool Posts

Inductive Sensor (Signaling Disc) is a quick-wear part and also the key part of a tool post or turret.

If it is broken please change it with a new one.

Wiring note:

1. Plus Sign (+) connect to the Red cable, and Minus Sign (-) connect to the green cable.

2. Other four Screws 1-Yellow, 2-Orange, 3-Blue, 4-White.

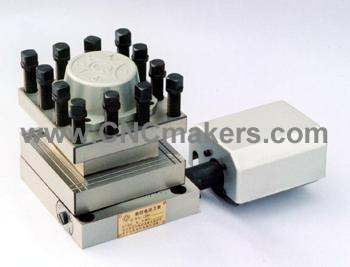

4-station tool post and its Inductive Sensor


 6-station tool post and its Inductive Sensor.



 8-station turret and its Inductive Sensor



Production Line:
